Horizontal Multi Stage Pumps
Horizontal Multi Stage Pumps Specification
- Features
- High perfomance
- Usage
- Industrial
- Color
- Black/Blue
- Product Type
- Horizontal Multi Stage Pumps
- Material
- Cast Iron
- Power
- Electric
- Standard
- High
- Application
- Submersible
- Suction Type
- 2
- Seals Type
- 100
Horizontal Multi Stage Pumps Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 7 Days
About Horizontal Multi Stage Pumps
With the valuable assistance of skilled team of professionals, we are exporting and supplying premium quality Horizontal Multi Stage Pumps. Offered pumps are widely applicable in sugar-steel Plant, Paper & Textile industry, Hospitals and various other areas for cleaning sludge, waste water, storm water etc. These pumps are manufactured at our vendors ultra-modern manufacturing using high quality stainless steel and advanced technology under the supervision of experienced professionals. Further, offered Horizontal Multi Stage Pumps are checked thoroughly by our quality analyst to ensure their flawlessness at clients end.
Features:
-
Wetted parts in SS 304
-
Compact construction
-
Simple commissioning & operation
-
Drive via IEC standard motors
MOC:
-
Impellers : SS 304
-
Stage Chambers : SS 304
-
Suction & Discharge cover : SS / CI
-
Shaft : SS
-
M.Seal : TC vs Sic /
-
Sic vs Carbon
-
Elastometer : EPDM / Viton
Range:
-
Flow range : 1-13 m3/ hr
-
Head Range : upto 68 metres
-
Fluid temp : 15 to +90 deg C
-
Max Operating Pressure : 10 Bar
-
Max Inlet pressure : 6 bar
-
Nominal Speed : 2900 rpm
-
Motor : Single / Three phase
-
Insulation : Class F
-
Protection : IP54 / IP55
Applications:
-
Pressure Boosting Systems,
-
Liquid Transfer, Chillers,
-
General Industrial Applications
-
All single phase pumps are available
-
with thermal overload protection.
Get Latest Price
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Stainless Steel Multi Stage Pumps Category

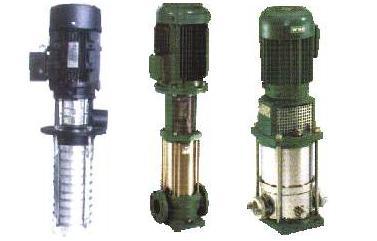

Vertical Multistage Centrifugal Pumps
